Stainless steel tank
  • /upfile/2016/10/31/20161031221841_119.jpg
  • /upfile/2016/10/31/20161031222415_542.jpg
  • /upfile/2016/10/31/20161031222445_487.jpg
  • /upfile/2016/10/31/20161031222522_414.jpg
  • Emulsification Tank
  • Emulsification Tank
  • Emulsification Tank
  • Emulsification Tank

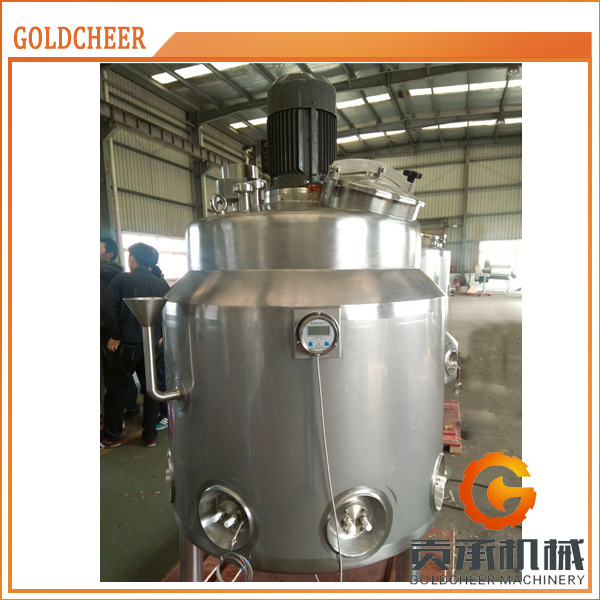

Emulsification Tank

Description:

The high speed shear emulsification tank is the most advanced mixing equipment inland. It has been used widely in the field of dairy, beverage, and food. The high speed shear emulsification tank we produce adopt advanced imported technology, and is featured of unique mixing structure, and crushing function. The compact structure of rotor and stator ensure the raw material will be cut with the speed of hundreds of thousand per minute,  high-shear emulsification tank is advanced mixing equipment widely used in dairy, beverage and food industries.

Contact us >>

  • Technical Parameter
  • Characteristic

Model

Volume(L)

External diameter(mm)

 height(mm)

Motor power(kw)

Motor speed(r/min)

GCRH-500

500

800

2140

7.5

2900/1440

GCRH -1000

1000

1050

2380

11

2900/1440

GCRH -1500

1500

1180

2450

15

2900/1440

GCRH -2000

2000

1340

2760

18.5

2900/1440

GCRH -3000

3000

1540

2870

22

2900/1440

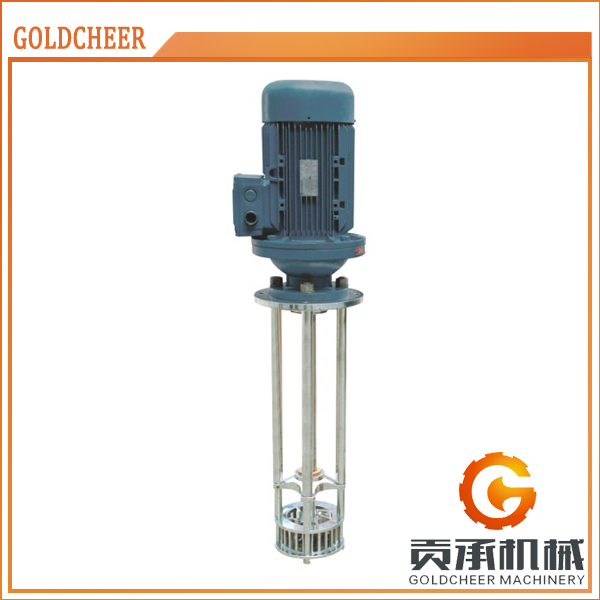

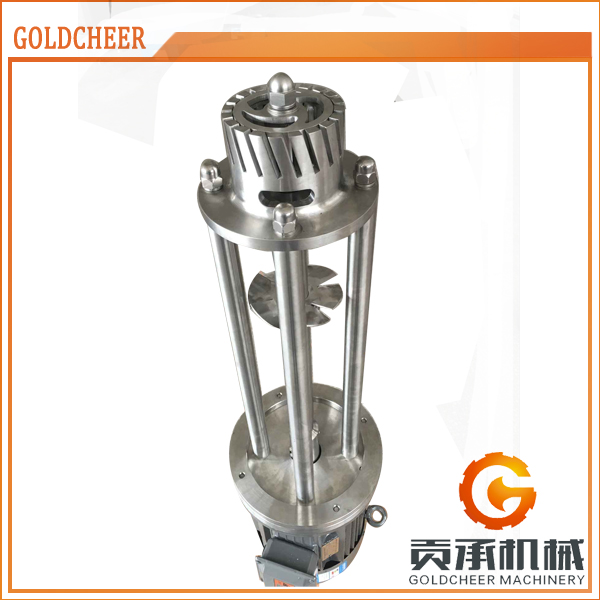

(1) Emulsifications tank is composed of rotor and stator. At working, the emulsification head throws material to stator from the center of rotor at a high speed. Then material will be sheared, crashed and crushed through the gear clearance between rotor and stator. It integrates functions of mixing, emulsification, homogenization, dissolution and crushing.

(2) Easy to operate, convenient for use.

(3) Structure: Single-layer type, double-layer type with heat preservation, jacket tank.
