Mango Pulp Production Line
  • /upfile/2016/10/18/20161018205831_545.jpg
  • /upfile/2016/10/18/20161018205915_404.jpg
  • /upfile/2016/10/18/20161018210214_337.jpg
  • /upfile/2016/10/18/20161018210247_169.jpg
  • Mango Pulp Production Line
  • Mango Pulp Production Line
  • Mango Pulp Production Line
  • Mango Pulp Production Line

Mango Pulp Production Line

Description:

Shanghai Goldcheer Machinery Co.,Ltd specializes in designing, manufacturing and installation concentrate mango pulp production line which can also process blackberry puree, strawberry puree, blueberry puree, apple puree, mango paste, apricot paste, carrot paste, onion paste, chili paste and many other fruit jam.

Contact us >>

  • Characteristic
  • Technical Parameter
  • Process Diagram
  • Packaging Type
  • Equipment list

(1)Shanghai Goldcheer Machinery Co.,Ltd specializes in designing, manufacturing and installation concentrate mango pulp production line which can also process blackberry puree, strawberry puree, blueberry puree, apple puree, mango paste, apricot paste, carrot paste, onion paste, chili paste and many other fruit jam.

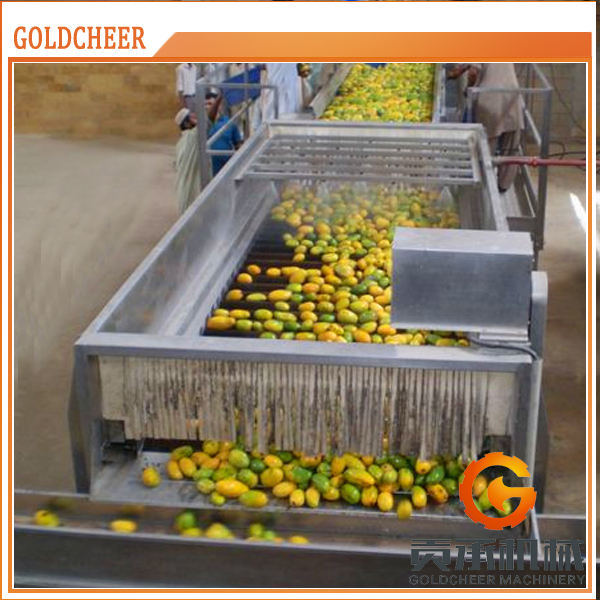

(2)Concentrate mango pulp production line is equipped with washing machine, sorting machine, de-stoner, pre-heater, refining machine, vacuum evaporator, sterilizer, aseptic filler/can filler/carton box packing machine.



(3)Mango processing line is with capacity from 1t/h to 20t/h



(4)Final products with brix 28-30% or customized.

Raw Material

Fresh Mango

Final Products

 Mango natural pulp/concentrate pulp/ mango juice

Processing Capacity

1t/h~20t/h

Original Brix

14%~17%

Final Brix

28-30%

Package Options

220L Aseptic bag, Can, Glass Jar, aseptic brick carton box

Number

Equipment name

A

Washing machine

B

Sorting machine

C

Destoner

D

Storage tank

E

Pump

F

Pre-heater

G

Pulping machine

H

Storage tank

I

Vacuum evaporator

J

Tube-in-Tube sterilizer

L

Aseptic filler

M

Can filling machine/carton box filling machine

N

Tunnel sterilizer

O

Drying machine

P

Date printer

Q

Carton packing machine
